Sitas Technical Services LLC Services
Building Maintenance Unit (BMU) + Industrial Material Handling
Building Maintenance Unit (BMU)
Our Building Maintenance Units, offer access to all kinds of façade regardless of the respective building height. As standard variants or special solutions, they adapt to the prevailing building shape, and therefore cover the complete field “façades”. All our products always apply to the valid standards and regulations.
BMU Roof Cars
Mounted permanently at roof level a BMU is the safest and most complete form of suspended access system, providing full lateral, horizontal and vertical movement of the working platform.
Our BMUs provide hoisting heights of upto 400m and jib outreach of upto 35m enabling safe access to even the tallest and most complex building façades. The cradles have typical working load limit of 250kg, although additional loads can be designed into the systems to facilitate glass replacement winches for future maintenance of the building.
Front Angle Guide Machine
- Twin Track Machine
- Telescopic Jib Machine
- Luffing Jib Machine
Safety Line System / Fall Arrest System
Access roofs and other high-level structures is required in all sectors of industry on a daily basis for maintenance activities such as gutter cleaning, access to rooftop plant, and repairs to telecommunications PV panels installations to be carried out safely and efficiently. it is essential that adequate systems, are in place to protect workers against falls from height.
Aluminium Platforms
- 2m-8m Self powered permanent platform (Cradle)
- 2m-8m Self Powered temporary Platform (Cradle)
- Telescopic Platforms (Custom Built)
Aluminium Gantry & Ladder

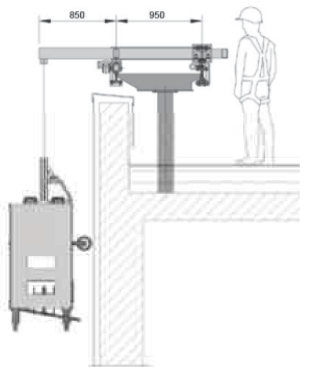

Davits (Steel / Aluminum)
Davits (Steel/Aluminium), used singularly or in pairs, provide an efficient and practical means for suspending bosun’s chairs, single work cages or platforms. Davits are commonly used on multi-level buildings and where it is necessary to clear non-structural parapets, sloped glazing, and decorative cornice mouldings. Davits provide greater flexibility in roof rigged applications I.e. clearing high parapets or storing platform on roof.
Davit systems are very popular on buildings with various terrace levels. Davit bases can be recessed below the pavers if an inverted roofing system is used. The davit base can be concealed with a paver cap. Davit bases are completely installed around the perimeter of the roof top. The davit arms themselves are dedicated to a specific building and most often dedicated to a specific roof level.
Types of Davits
- Slab Mounted Davits
- Parapet Mounted Davits
- Telescopic Arm Davits (Customised)
- Sliding Davits (Manual Trolley/Motorised Trolley)
- Telescopic Arm Sliding Davits (Manual Trolley/Motorised Trolley)
Industrial Material Handling
Overhead Cranes
Sitas supply & install high efficiency industrial single or double girder overhead cranes in FEM standards with the world’s leading manufacturing technologies. We provide special solutions to customers with standard products in our production range. All Single Girder and Double Girder Overhead Cranes are driver-controlled for all motions (Long-Travel, Cross-Travel. Hoisting), complete heavy duty tasks without any problem; while sustaining safe and problem- free operation with electronically controlled motions
Standard Overhead Cranes are produced from 1000kg up to 80000kg and larger than 80000kg overhead cranes are produced specially up to 250000kg.
Overhead cranes provide quality and efficiency thanks to smooth and silent running ability.
They are suitable for high lifting capacities and heavy-duty class.
Minimum investment requirement for maximum space optimization.
Safe running ability with traverse limit switch.
Crane operator cabin as option.
Gantry Cranes
Sitas supply & install high efficiency gantry cranes in FEM standards with the world’s leading manufacturing technologies. We provide special solutions to customers with standard products in our production range. all Single Girder and Double Girder Gantry Cranes are driver-controlled for all motions (Long-Travel, Cross-Travel, Hoisting) and complete heavy-duty without any problems: while sustaining safe and problem-free operation with electronically controlled motions.
Standard Gantry Cranes are produced from 1000kg up to 80000kg and larger than 80000kg gantry cranes are produced especially up to 250000kg.
Gantry cranes provide quality and efficiency thanks to smooth and silent running ability.
They are suitable for high lifting capacities and heavy-duty classification.
Minimum investment requirement for maximum space optimization
Very safely running ability with traverse limit switch.
Crane operator cabin as option.
SL & ISL Models
SL Models: Lighter Duty, and Limited flexibility
The SL models are specifically engineered to handle lighter duty cycles due to a slower ground speed and hoisting speed. they lift loads in a vertical direction only and do not offer the ability to traverse the load across the widh of the crane. The SL drivers reliable and consistent performance, but is not designed for high volume situations like the ISL Model.
ISL Models: Heavy Duty & Maximum Flexibility
The ISL model possesses all of the consistency and reliability of the SL model, but takes it a step further. The ISL is a more specialized crane that can aid in solving the toughest lifting challenges you can throw at it. Some of the many benefits we have engineered into the ISL model include a significantly heavier duty cycle, faster ground speed, faster hoisting speed, and the ability to traverse loads horizontally. Plus, the ISL comes with a diesel and an enclosed operator compartment as standard features.
DB Series
Join the evolution. Shuttlelift’s new DB Series, the double-beam gantry crane is designed with the same legendary quality and reliable handling that Shuttlelift is known for. Much like the ISI., SL and SB Series, the DB Series continues the Shuttlelift evolution by providing first-class quality features and options that will boost productivity and performance with no compromises. For those markets looking for high-quality crane performance and the highest return on investment, the DB series gantry crane was developed in response to a growing need in the marketplace for cost-effective solutions for those needing to lift heavy, bulky items from production to transport.
SB Models
Shuttlelift’s SB series gantry cranes offer additional lifting solutions to our already tried and proven SL and ISL mobile gantry crane series.
JIB Cranes
The JIB cranes increase the production speed of your business and reduce the workloads of the other larger cranes while performing material handling and placement processes with high efficiency in their locations. Out JIB cranes are applicable to wide variety of industries, the product types are..
- Floor-mounted turning angle jib cranes [360 rotation capacity]
- Wall-mounted [direct connection] jib cranes
- Wall-mounted turning angle jib cranes [180 rotation capacity)
- Column-mounted turning angle jib cranes [between 180-270 rotation capacity]
- Wall-running jib cranes
Advantages
Better efficiency when used in narrow spaces or around any machine
JIB cranes, used for reducing workloads of the overhead cranes at narrow spaces of the production site, are suitable for carrying capacities from 250kg up to 5000kg
JIB cranes especially provide the optimum solutions for array workstations that are lined side by side
Special Crane System
We also provide special design crane systems. According to customer requests, the most appropriate design is created- thanks to our Special Projects team’s carefully examining processes, we successfully commission various types of special cranes, lifting groups and material handling automation. Some are:
Explosion Proof Cranes
Nuclear Cranes
Radial Cranes
Polar Cranes
Ladle Crane for hot metal applications
Advantages
Manual or automatic special anodizing cranes that have high efficiency and effective productivity for the aluminum industry.
Battery-powered transfer cars
Crane weighbridge applications and demonstration of the load’s weight on the big screen
Rubber Tire Gantry Cranes
Our Rubber tire Gantry cranes from Shuttlelift, USA represent an evolution of over 50 years of experience and innovation. Over this span, Shuttlelift has engineered solutions for customers in a wide variety of manufacturing industries including:
Pre-fabricated concrete
Steel Mill
Modular buildings
Wind power generation
Aerospace
